AS 2518 - 54 power board AMP connectors and plugs (halted order numbers)
|

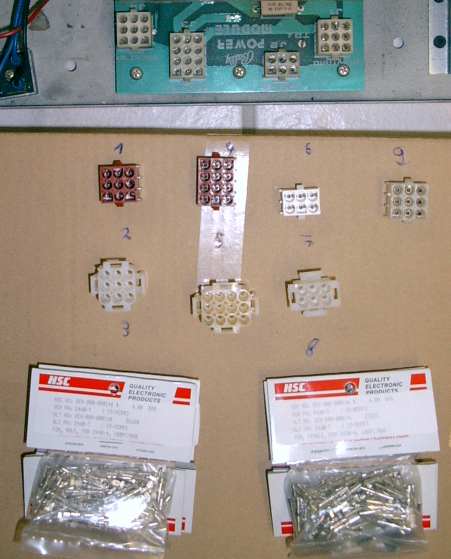

1) J4 and J5 - pc-mount male pin socket 9 pin (8125) 2) J4, J5 and J1 - plug body .085 9 pin (80690) 3) female .085 pin (gen-000-000146) 4) J3 - pc-mount male pin socket 12 pin (8499) 5) J3 - plug body .085 12 pin (80691) 6) J2 and J6 - pc-mount male pin socket 6 pin (5604) 7) J2 and J6 - plug body .085 6 pin (16403) 8) male .085 pin (gen-000-000148) 9) J1 - pc-mount female pin socket 9 pin (????) The plug bodies are empty. Use pin no 3 for male sockets and pin no 8 for female sockets (only J1). |
Older power supply (halted order numbers)
|

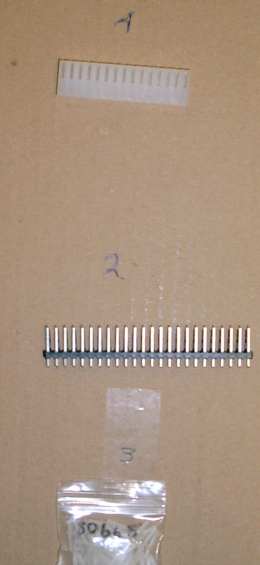

1) .156 plug body 15 pin (80662) 2) .156 header 24 pin(80664) 3) polarizing keys (80665) You can cut 1 and 2 for the correct size. |
And of course:
.156 trifurcon pins, molex number 08-50-189 (80657)
You can order all these parts from www.halted.com. Ask for Bob Ellingson (bobe@halted.com).
If you found any errors or additional connectors in your bally pinball, mail me please.
