6802 bally mpu

6802 bally mpu (-35 compatible...)

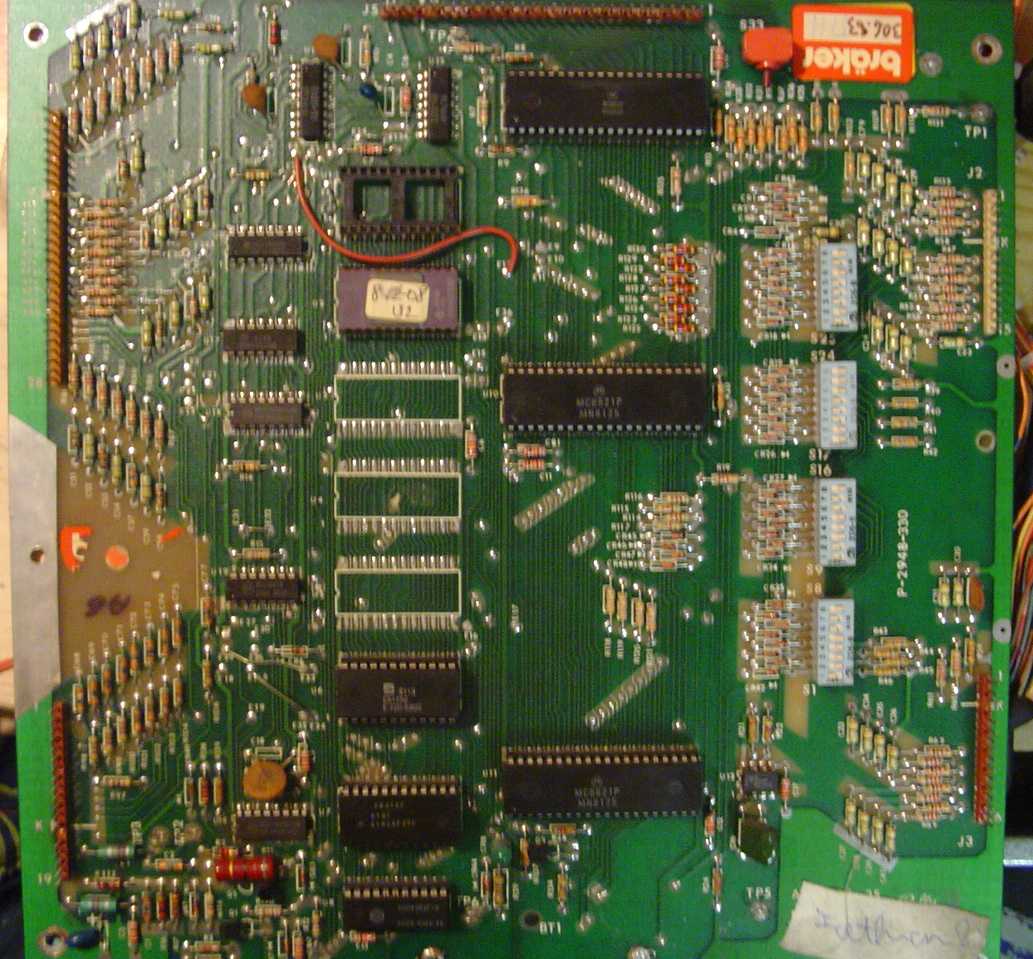

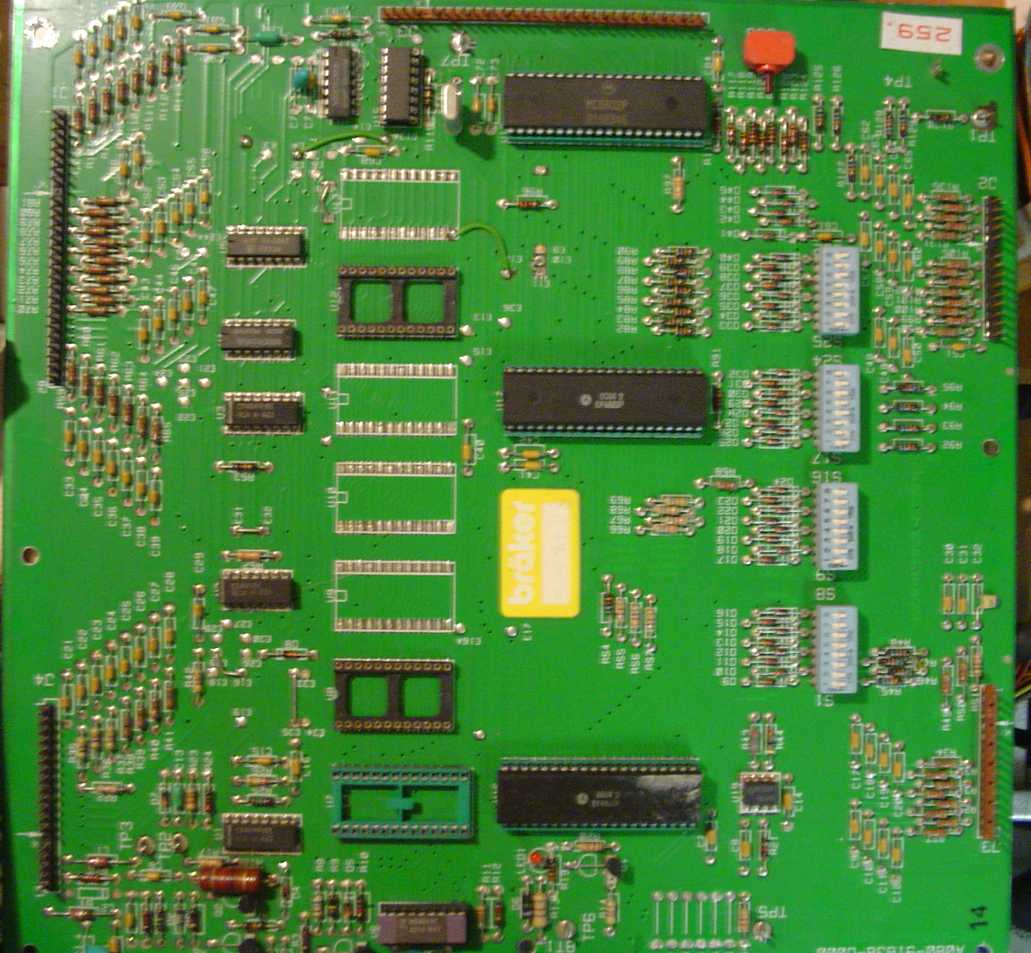

Bally -35 mpu	Bally 6802 mpu

Overviews of the 6802 mpu

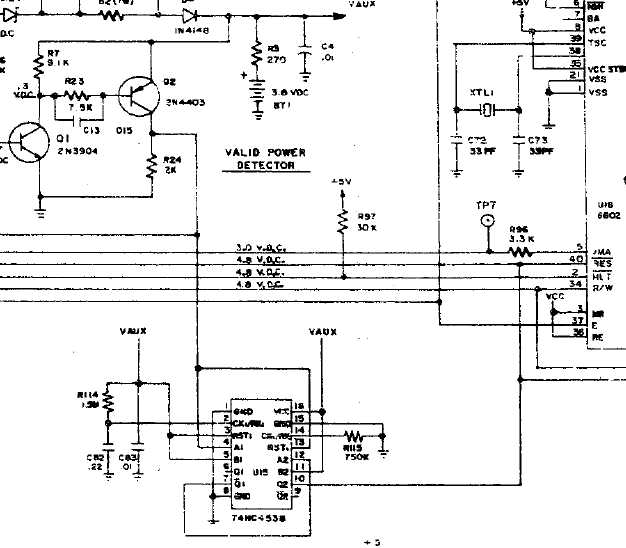

reset circuit

schema 6802

pcb 6802

Here you see a 74ls00 and a 74hc4538. The 74hc538 is also battery buffered. -> This means, the reset line is high after power on until valid power (from the 2n3904 and the 2n4401) is detected.

pcb -35

Here you see the clock circuit (a 74s37 and a 9602). This circuit is replaced with a crystal and two caps.

back to overview

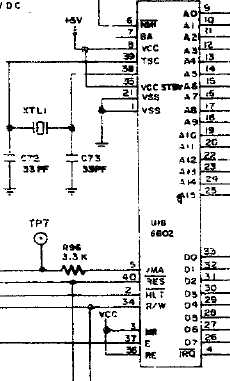

cpu

schema 6802

pcb 6802

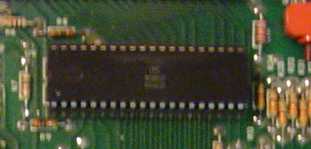

Here you see a 6802 and the clock circuit: a 2.00 MHz. crystal and two caps.

pcb -35

back to overview

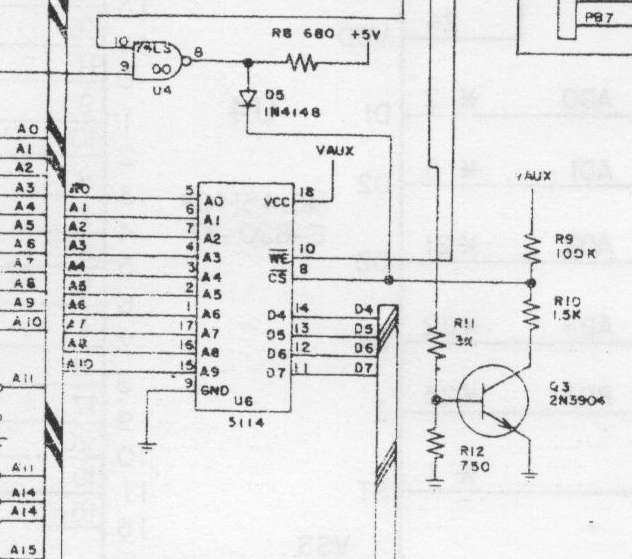

memory 5114

schema 6802

pcb 6802

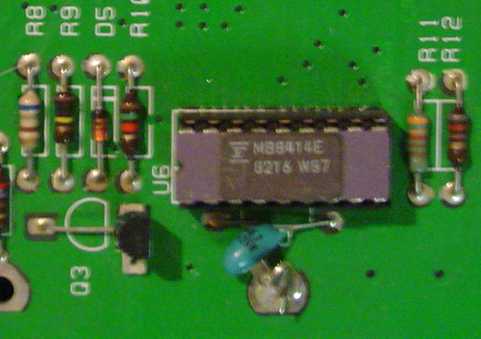

Here you see a 5114 memory chip (a 1024x4-bit CMOS, 4 times larger than the 5101) and part of the reset circuit. (a 2n3904). The memory chip and the reset circuit are battery buffered.

pcb -35

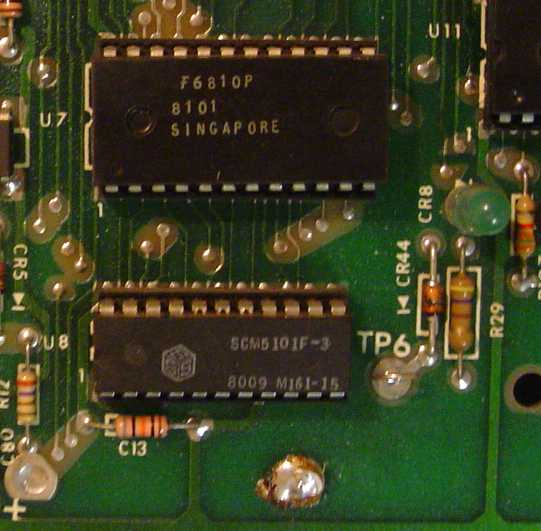

Here we have our nice 5101 (256x4-bit CMOS) and the 6810 ram. The 6810 ram is not longer used, because this memory is part of the 6802.

back to overview

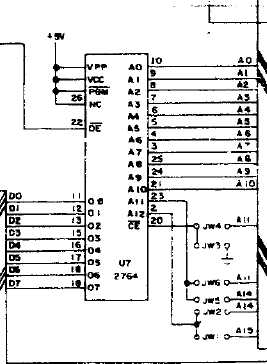

eprom 2764

schema 6802

pcb 6802

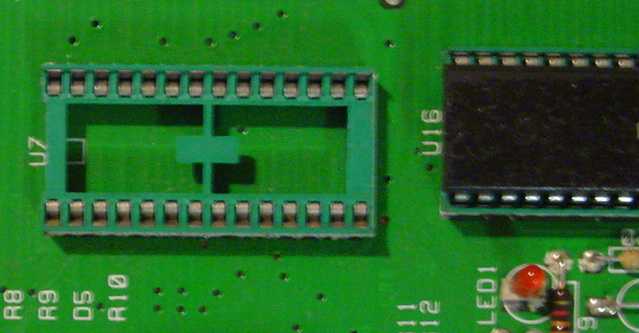

Here you can mount a 2764 eprom. This one could replace the two 2732 eproms for the game roms. (These ic-sockets are a nightmare by the way. They look nice and clean, but they are as worse as the ic-sockets on the -35 bally mpu).

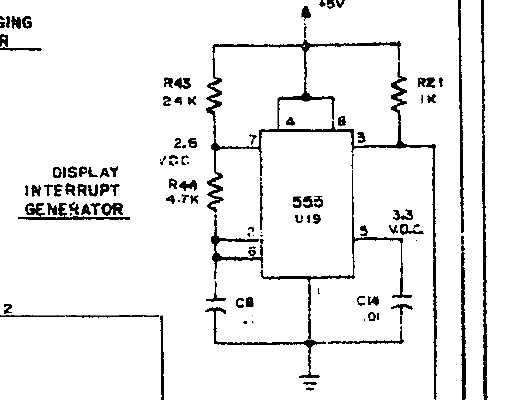

back to overview timer 555

schema 6802

pcb 6802

The only difference between the 6802 and the -35 board is one resistor, but this is an important one:
The frequenz of this circuit is calculated in the following way: (formula took from here...)
forumula: 1,44/(((resistor between pin 7 and +5v) + 2 *(restistor between pin 6 and 7)) x (cap between pin 2 and gnd)).
Bally 35 board: 317 khz = 1.44 / ((36000 + 2 * 4700) * 0.0000001)
6802 board: 431 khz =1.44 / ((24000 + 2 * 4700) * 0.0000001)

back to overview

additional jumpers (for the 2764)

schema 6802

pcb 6802

These are additional jumpers. (The "old" ones are at the same places...) I think with these jumpers you can :
Replace the two 2732 eproms with one eprom
or
map the addtional 2764 eprom into a specfic memory location (This means a bally game with the double program size would be possible.....)

I got information from justin concerning a cybernaut with a 6802 MPU and a 2764 eprom:
Eproms
U7 - 2764
Jumpers - J2, J4, J7, J10, J11

back to overview

To summarize:
This 6802 mpu is a logical enhancment of the old bally-35 boards.
The differences:
6802 chip (instead a 6800)
no 6810 memory chip (is include in the 6802)
no clock circuit (has a crystal and two caps)
can work with one 2764 eprom
5114 memory chip (instead a 5101)
and a complete different reset circuit ( with a 74hc4538 and a 2n3904 for the 5114)
but :
It is full compatible to the bally-35 mpu..
It was prepared for the bally future:
Double progam size and quadruple ram size (dream of cool bally machines with this mpu...)
The game software is the same as for the bally-35 boards. So you can use the marvin3 guide...

any feedback welcome...
